CAML 125kW/261kWh All-in-One BESS for C&I Applications
CAML 125kW/261kWh All-in-One BESS for C&I Applications

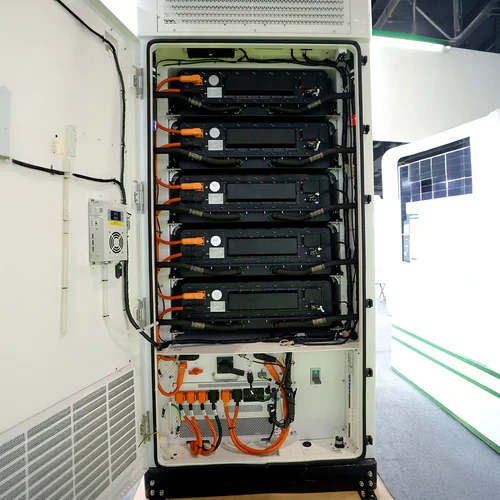

Loom introduces the CAML C&I BESS Solution, with capacities starting from 125 kW AC and 261 kWh DC, providing a 2-hour power backup solution. It is an all-in-one, liquid-cooled Battery Energy Storage System that can be expanded up to 1 MWh for commercial and industrial applications.
Working Principle

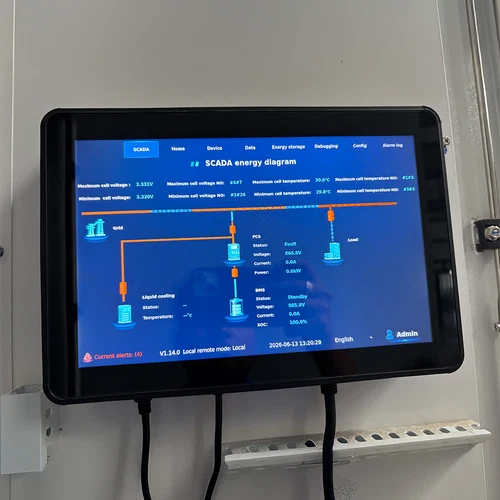

Integrates LiFePO4 battery, BMS, PCS, EMS, STS, fire protection, and liquid temperature control in an innovative enclosure. Supports on-grid/off-grid modes (PQ, VF, VSG, constant DC voltage), black start, anti-back flow, and 100% 3-phase unbalanced loads.
Product Features
- Highly Integrated: Fully integrated battery, BMS, PCS, EMS, STS, fire protection, and temperature control.
- Modular Plug-and-Play: Standardized building block design expandable up to 1 MWh.
- Full Scenario Coverage: Supports AC 3-phase 3-wire and 3-phase 4-wire configurations.
- Grid Modes: On-grid and off-grid support with PQ, VF, VSG, and constant DC voltage operating modes.
- Frequency Modulation & Load Handling: Primary frequency modulation with 100% 3-phase unbalanced load capacity.
- Smart Functionality: Supports black start, anti-back flow, overload protection, Ethernet, and wireless communication.
Technical Specifications
| System Nominal Capacity | 261 kWh |
|---|---|
| Nominal Output Power | 125 kW |
| Battery Cycle Time | > 6000 times (>45°C) |
| Protection / Operating Temp | -25°C ~ +50°C (>45°C Derating) |
| Fire Protection Cooling | Aerosol / Liquid Cooled |
| Altitude | ≤4000m (>2000m Derating) |
| Dimensions (L*W*H) | 1100 * 1500 * 2100 mm |
| System Weight | ~2800 kg |
| AC Nominal Power (On-grid) | 125 kW |
| AC Nominal Voltage / Current | 400V / 180A |
| AC Frequency / Power Factor | 50Hz/60Hz | -1 ~ 1 |
| AC Overload Capacity | 1.1 times (long term), 1.2 times (1 min) |
| Cell Type & Configuration | LFP 3.2V / 314Ah | 261kWh / 1P260S |
| Max Charge / Discharge Power | 150 kW |
| Nominal DC Voltage / Range | 832 V (728V - 936V) |
| Off-grid Max Power Load | 137.5 kW |
| Grid Switching Time | < 20 mS |
| MPPT Module (Optional) | 2 pcs (Nominal Power 4*15kW, Max MPPT Current 4*37.5A, Voltage 200V~650V) |
Product Overview
Designed specifically for commercial and industrial applications such as manufacturing plants, showrooms, hospitals, hotels, marriage halls, rice mills, cold storage facilities, and solar power plants.
