CAML 2.56 kWh (100Ah, 25.6V) LiFePO4 Wall-Mount – Lithium Battery
CAML 2.56 kWh (100Ah, 25.6V) LiFePO4 Wall-Mount – Lithium Battery

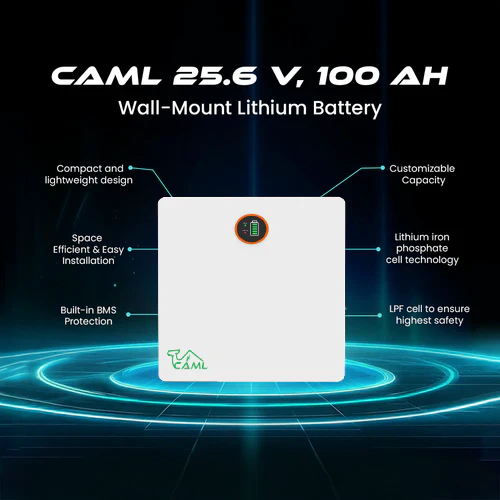

The CAML 10025 is a wall-mounted lithium battery designed for residential solar systems. Built with high-quality LiFePO4 cells, it offers a long cycle life and is compatible with a wide range of hybrid, on-grid, and off-grid inverters. The battery features a compact design for easy installation, flexible capacity, and safety mechanisms to protect against overcharging and short circuits.
Working Principle
An LED display for real-time monitoring and easy communication capabilities provides a reliable and efficient energy storage solution for homes. Built-in safety mechanisms protect against overcharging, over-discharging, and short circuits for added reliability.
Product Features
- Perfect for Residential Use: Designed for home use, this wall-mounted lithium battery is ideal for residential solar energy systems.
- High-Quality LiFePO4 Cells: Built with premium LiFePO4 cells, ensuring excellent performance and longevity.
- Long Cycle Life: Provides a long cycle life, making it a durable and cost-effective choice for long-term use.
- Compatible BMS: The Battery Management System (BMS) is compatible with various brands of inverters, whether for hybrid, on-grid, or off-grid systems.
- Unique Design: Its compact and sleek design allows for easy wall-mounting and saves space in your home.
- Flexible Capacity: Offers flexible capacity to meet different energy needs, ensuring the battery suits a wide range of residential setups.
- Safe & Reliable: Features built-in safety mechanisms that protect against overcharging, over-discharging, and short circuits for added reliability.
- LED Display: Equipped with an LED display to show real-time battery status, providing users with clear visibility of battery health and charge levels.
- Easy Installation: Simple to install with user-friendly setup and communication capabilities for integration with your solar system.
- Warranty: Comes with a 5-year manufacturing and performance warranty for long-term reliability.

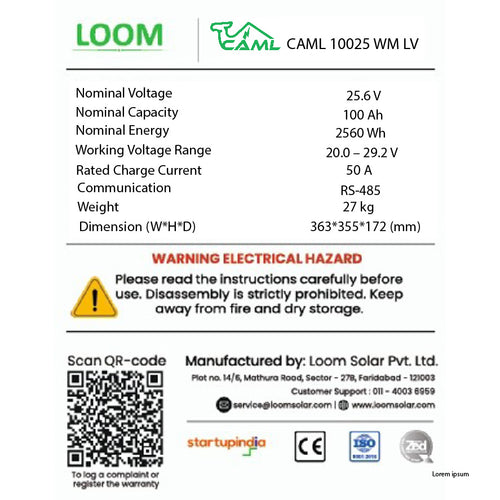

Technical Specifications
| Manufacturer | Loom Solar |
|---|---|
| Model Number | CAML 10025 WM |
| Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Rated Capacity | 100 Ah |
| Nominal Voltage | 25.6 V |
| Charging Cut-off Voltage | 28.08 V |
| Max. Voltage Range | 20.0 – 29.2 V. Shipping Voltage > 25.6 V |
| Recommend Charge/Discharge Current | 0.2 C, 50 A |
| Max. Charge / Discharge Current | 0°-15 °C: 20 A, 15°-45 °C: 100 A |
| Operating Temperature Range | -20 °C to 60 °C |
| Nominal Energy | 2560 Wh |
| Max. Output Power | 2.4 kWh |
| Installation | Floor or Wall-Mount |
| Storage Environment (50% SoC) | 20 - 45 in three months; 25 + 3 Over Three Months; Humidity: 65 + 20% RH |
| Communication Port | CAN / RS-485 |
| Protection Class | IP54 |
| Environment | Indoor |
| Charge Temperature | 0 - 55 ℃ |
| Display | State of Charge (SoC), LED Display |
| Cycle life | 6000 Times @ 80% DoD |
| Warranty | 3-year |
| Protection | Smart BMS Protection with Communication |
| Efficiency | 90% |
| Weight (including case) | ~27 kg |
| Dimension (L*W*D) | (355 x 363 x 172) mm |
| Certifications | UN38.3, RoHS, MSDS, CE |
Product Overview
The CAML 10025 WM Wall-Mounted Lithium Battery represents a modern approach to home energy independence. Engineered specifically for residential solar setups, it provides seamless power integration, long cycle longevity, and optimal space management.
