CAML 48 V 100 Ah, 5 kWh Lithium Battery – Rack Mount
CAML 48 V 100 Ah, 5 kWh Lithium Battery – Rack Mount
CAML LiFePO4 (Lithium Iron Phosphate) Wall-Mount battery is designed to offer both space efficiency and high performance. CAML 48 V 100 Ah Lithium-ion battery provides a safe operating voltage and Battery Management System (BMS) compatible with various inverters available in the market. It offers a remarkable 3500 charge cycles and fast charging capabilities.
Working Principle
Fast charging allows the battery to get fully charged in just 2-3 hours. It operates efficiently in a wide temperature range and weighs almost one-quarter of traditional SMF and Lead-Acid batteries. Additionally, the system is expandable and supports parallel configuration to increase battery bank capacity.

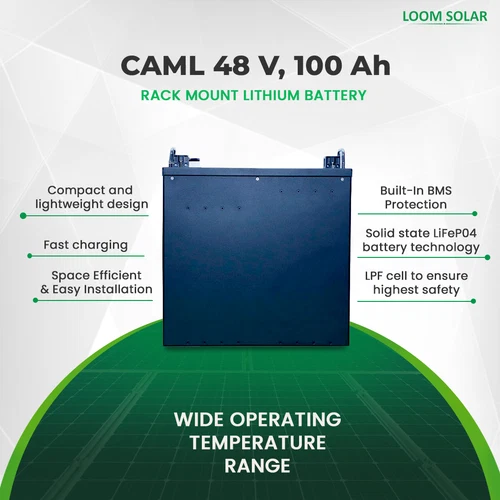

Product Features
- Fast Charging: Battery gets charged 100% in just 2-3 hours.
- Longer Life: Compared to Lead-acid and SMF, the Lithium battery has a 3,500-cycle life, which translates into 10-15 years of usable life.
- Light Weight: The weight of a lithium battery is 1/4th of other comparable batteries, such as SMF and lead acid batteries.
- Zero Maintenance: Free, no memory effect.
- Expandable: Battery bank expandable in parallel.
- Safe: Safest battery with modular design.
- Temperature Range: Wide operating temperature range.
- Installation: Quick and easy installation.

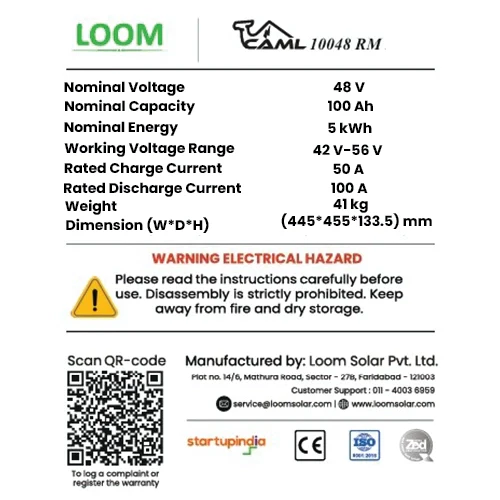

Technical Specifications
| Manufacturer | Loom Solar |
|---|---|
| Model Number | CAML-10048 RM |
| Product Name | CAML Wall Mounted Lithium-Ion Battery |
| Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Rated Capacity | 100 Ah |
| Voltage | 48 V |
| Charging Cut-off Voltage | 48 V |
| Recommend Charge Current | 0.2 C, 20 A |
| Max. Charge Current | 0°-15°C: 20 A, 15°-45°C: 50 A |
| Operating Temperature Range | -20°C to 65°C |
| Environment | Indoor |
| Max. Output Power | 5.0 kW |
| Installation | Rack-Mount |
| Communication Port | CAN / RS-485 for inverter communication |
| Protection Class | IP65 |
| Grid Connection | Off-grid, Hybrid grid |
| Cycle Life | 3500 Times @ 80% DoD |
| Warranty | 5-year |
| Protection | Smart BMS Protection with Communication |
| Efficiency | 98% |
| Weight | 42 kg |

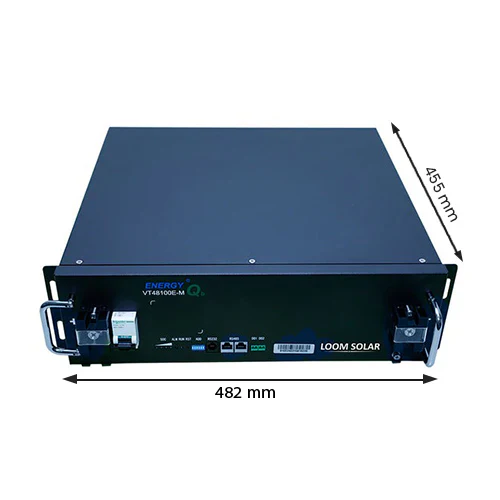

| Dimensions (L x W x H) | 455 x 445 x 133.5 mm |
| Certifications | UN38.3, RoHS, MSDS, CE |
Product Overview
Ideal for both domestic and commercial applications where safety, long life, and light weight are essential. Free Replacement Parts Service - Enjoy free replacement parts service and online technical support for 1 year after purchase. Caution: Do not throw batteries into fire. Do not short-circuit. Do not heat or disassemble. Danger: Chemical & Shock Hazard. Do not drop, deform, impact, or pierce the battery.Warning: Recharge the battery every six months if stored. Recharge within 10 days after a full discharge.
