CAML 5.12 kWh (100Ah, 51.2V) LiFePO4 Battery – Wall Mount
CAML 5.12 kWh (100Ah, 51.2V) LiFePO4 Battery – Wall Mount
CAML LiFePO4 (Lithium Iron Phosphate) Wall-Mount battery is designed to offer both space efficiency and high performance. CAML 51.2 V 100 Ah Lithium-ion battery provides a Battery Management System (BMS) compatible with various inverters available in the market. It offers a remarkable 6000 charge cycles and fast charging capabilities, allowing the battery to charge fully in just 2-4 hours.
Working Principle
Operates efficiently in a wide temperature range and weighs almost one-quarter of traditional SMF and Lead-Acid batteries. The system is expandable and supports parallel configuration to increase overall battery bank capacity for domestic and commercial applications.
Product Features
- Fast Charging: Battery gets fully charged 100% in just 2-3 hours.
- Longer Life: Compared to Lead acid and SMF, Lithium battery has 6,000+ cycles life, translating into 10-15 years of usable life.
- Lightweight: The weight of a lithium battery is 1/4 that of comparable batteries such as SMF and lead acid.
- Zero Maintenance: Free, no memory effect.
- Expandable: Battery bank expandable in parallel.
- Safe: Safest battery with modular design.
- Temperature Range: Wide operating temperature range (-20°C to 65°C).
- Installation: Quick and easy wall-mount installation.

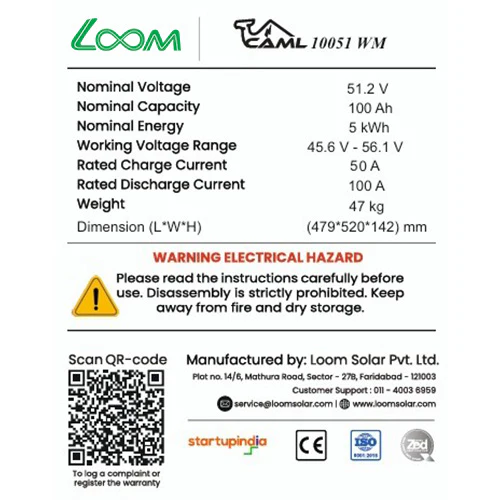

Technical Specifications
| Manufactured by | Loom Solar Pvt. Ltd. |
|---|---|
| Designed by | Loom Solar Pvt. Ltd. |
| Model Number | CAML10051-WM |
| Product Name | CAML Wall-Mount Lithium-ion Battery |
| Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Rated Capacity | 5120 Wh / 51.2 V / 100 Ah |
| Voltage | 51.2 V |
| Charging Cut-off Voltage | 56.16 V |
| Recommend Charge Current | 0.2 C, 20 A |
| Max. Charge Current | 0°-15°C: 20 A, 15°-45°C: 50 A |
| Operating Temperature Range | -20°C to 65°C |
| Environment | Indoor |
| Max. Output Power | 5.0 kW |
| Installation | Wall-Mount |

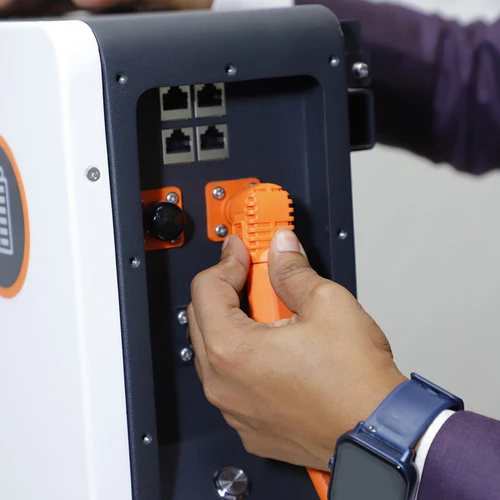

| Communication Port | CAN / RS-485 for Inverter Communication |
| Protection Class | IP65 |
| Grid Connection | Off-grid, Hybrid grid |
| Cycle Life | 6000 Times @ 80% DoD |
| Warranty | 5-year |
| Protection | Smart BMS Protection with Communication |
| Efficiency | 98% |
| Weight | 48.45 kg |

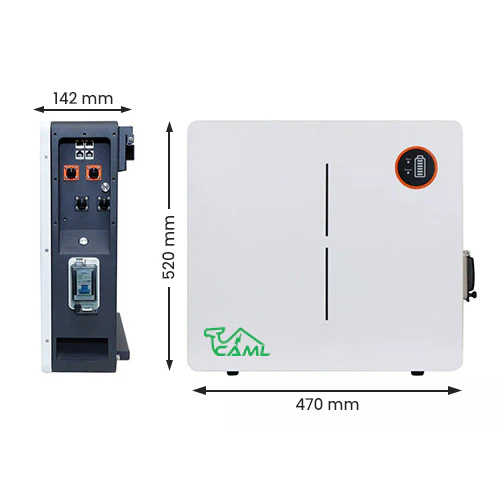

| Dimensions (LxWxH) | 520 x 470 x 141.5 mm |
| Certifications | UN38.3, RoHS, MSDS, CE |
Product Overview
Free Replacement Parts Service - Enjoy free replacement parts service and online technical support for 1 year after purchase.
Caution: Do not throw batteries into fire, short-circuit, heat, or disassemble. Charge with 50A constant until 56.16V at room temperature.
Danger: Chemical Hazard & Shock Hazard. Do not drop, puncture, or apply heavy pressure. Keep away from liquids, direct sunlight, and children.
Warning: Recharge the battery every six months. Recharge within 10 days after a complete discharge. Ensure correct earthing before operation.
