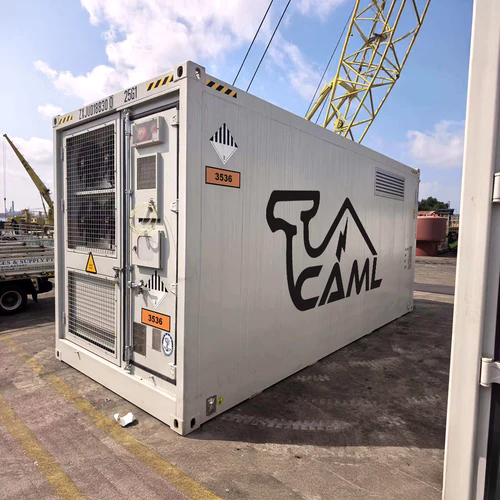

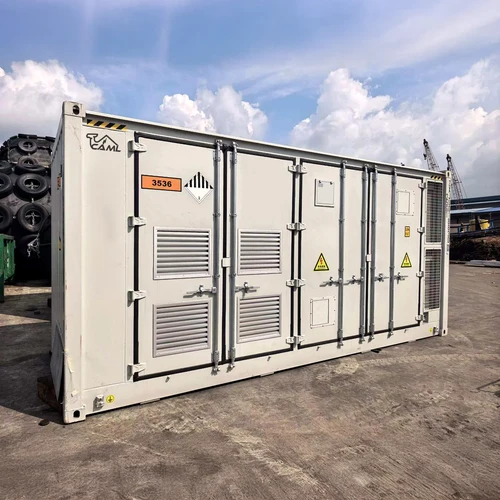

CAML 5 MWh Liquid Cooled Containerized Battery Energy Storage System (BESS)
CAML 5 MWh Liquid Cooled Containerized Battery Energy Storage System (BESS)
Loom introduces the CAML 5 MWh Containerized BESS Solution for utility-scale Battery Energy Storage System (BESS) projects. These systems are designed for peak demand management and peak-shaving applications.
Working Principle
Charges during daytime hours (11:00 AM to 2:00 PM) using solar power when tariffs are lowest. Discharges during evening peak demand hours (5:00 PM to 11:00 PM) to reduce grid reliance and lower power costs.
Product Features
- Scalable: Modular and scalable container design for utility applications.
- Safe: Multi-layer safety protection with smoke/heat sensors, FACP, dry pipes with sprinklers, and aerosol fire suppression.
- Efficient: Optimized liquid cooling thermal management for uniform cell temperatures.
- Smart: BMS + EMS intelligent control with CAN / Modbus 485 / TCP communication.

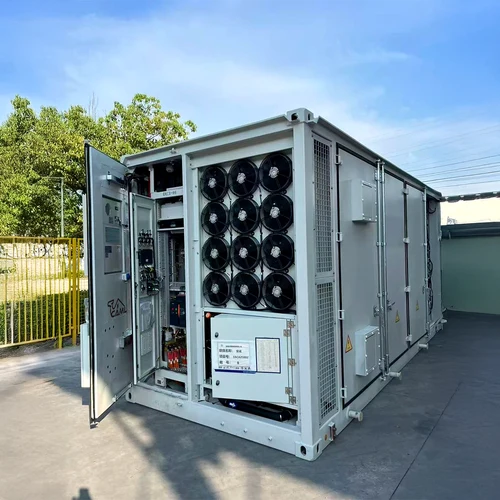

- Fully Integrated: Container includes HVAC/Thermal System, Fire Suppression, DC Combiner Panel, BMS Control Panel, Emergency Disconnect, and internal busbars.
Technical Specifications
| Nominal Capacity (kWh) | 5015.16 kWh |
|---|---|
| Nominal Voltage (V) | 1331.2 V |
| Voltage Range | 1164.8 ~ 1497.6 V |
| Cell Type & Cluster Config | LFP 3.2V / 314Ah | 1P 416S*12 |
| Nominal Power | 2507.9 kW @ 0.5CP ; 1258.8 kW @ 0.25CP |
| Auxiliary Power Supply | 400V AC, 50/60Hz |
| Operating Ambient Temp | -30°C to 50°C |
| Altitude | ≤3000m |
| SOC Calculation Accuracy | ≤3% (after balancing) |
| Relative Humidity | ≤100% RH (non condensing) |
| IP Rating | Container: IP55, Module: IP67 |
| Cooling Mode | Liquid Cooling |
| Noise Level | ≤75dB (A) Standard ; ≤65dB (A) Silencer Assembly |
| Total Weight | 42 Tonnes |
| Corrosion Proof Grade | C4 |
| Communication Protocol | CAN / Modbus 485 / TCP |
| Container Dimensions (mm) | 6058 x 2436 x 2896 mm (19.87 x 7.99 x 9.50 ft) |
| Certifications (Cell / Pack) | IEC62619, UL1973, UL9540A, UN38.3, IEC60730-1 |
| Certifications (Rack / System) | IEC 63056, IEC62477-1, EN IEC 61000-6-2/4, UN3536, UL9540 |
Product Overview
Utility-scale liquid-cooled energy storage container designed for peak shaving, microgrids, and large renewable energy integration projects.
