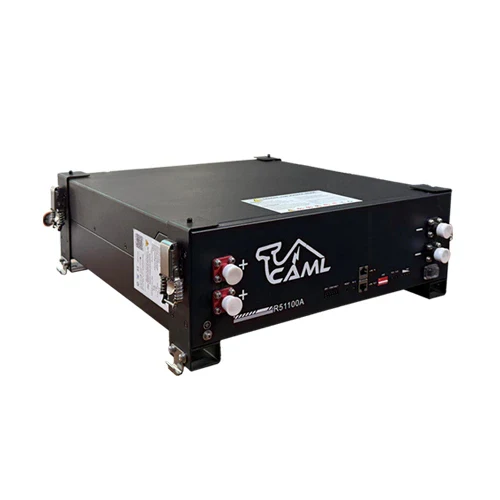

CAML 51.2 V 100 Ah, 5.12 kWh Rack-Mount Lithium Battery
CAML 51.2 V 100 Ah, 5.12 kWh Rack-Mount Lithium Battery
CAML LiFePO4 Rack-Mount Lithium Battery is designed to offer both space efficiency and high performance. This energy storage solution provides a battery management system (BMS) compatible with various inverters available on the market. It offers fast charging capabilities, allowing the battery to get fully charged in 2-4 hours.
Working Principle
Features built-in pre-charge protection circuits to avoid inrush current when connecting with different inverters or chargers. Supports scalable parallel connection up to 32 units (160 kWh total) with over 94.5% high discharge/charge efficiency.

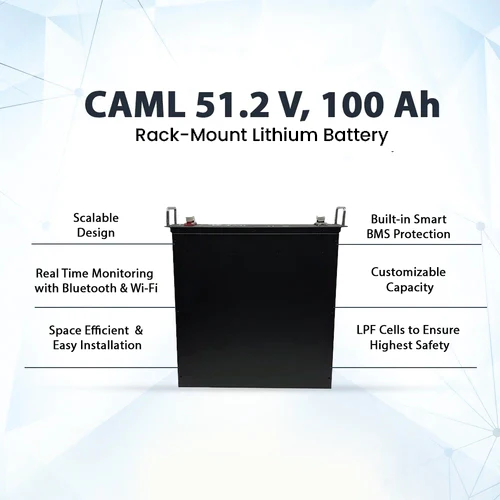

Product Features
- Safety: Smart BMS (Battery Management System) to ensure safety.
- High Discharge/Charge Efficiency: More than 94.5%.
- Flexible System Expansion: Modular and flexible, supports up to 32 batteries connected in parallel (scalable to 160 kWh).
- Space-Efficient: Compact design and rack-mounted form factor optimize space utilization.
- Pre-Charge Protection: Built-in pre-charge circuit to avoid inrush current when connecting with different inverters/chargers.
- Reliable Performance: Built with high-quality materials and advanced BMS technology ensuring stable performance.
- Customizable Capacity: Scalable configuration allowing tailor-made setups based on energy requirements.
- Higher Ah Efficiency: Up to 100% Ah (Ampere-Hour) efficiency.
- Longevity: Designed for long-term durability and reliability with minimal maintenance requirements.
- Warranty: Comes with a 5-year manufacturing and performance warranty for long-term reliability.

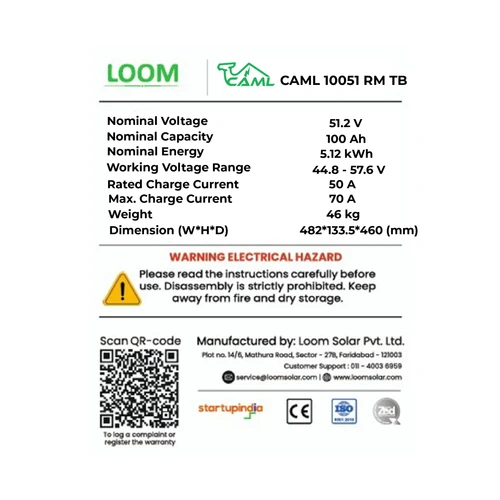

Technical Specifications
| Manufacturer | Loom Solar |
|---|---|
| Cell Type | Lithium Iron Phosphate (LiFePO4) |
| Rated Voltage (V) | 51.2 V |
| Max. Voltage Range (V) | 44.8 – 57.6 V. Shipping Voltage > 51.2 V |
| Charges Voltage (V) | 56.0 V |
| Float Charge Voltage (V) | 54.6 V |
| Nominal Energy @ 0.2C (kWh) | 4.92 kWh |
| Nominal Capacity @ 0.2C (Ah) | 100 Ah |
| Standard Charge Current (A) | < 50 A |
| Max. Charge Current (A) | 70 A |
| Standard Discharge Current (A) | < 50 A |
| Max. Discharge Current (A) | 100 A (Initial Temp. < 30℃) |
| Peak Discharge Current (A) | 101-119 A @ 5 mins | 120-200 A @ 15S |
| Communication | RS-485 / CAN |
| Max. No. of Parallel Connections | 32 pcs (scalable to 160 kWh) |
| Charge Temperature Range | -5 to 50℃ |
| Discharge Temperature Range | -10 to 50℃ |
| Storage Temperature @ Off Mode | < 6 Months (0℃ < T < 30℃) | < 3 Months (-10℃ < T < 45℃) |
| Recommended Environment | 15-35℃, 5-75% RH |
| Weight | 46 kg |

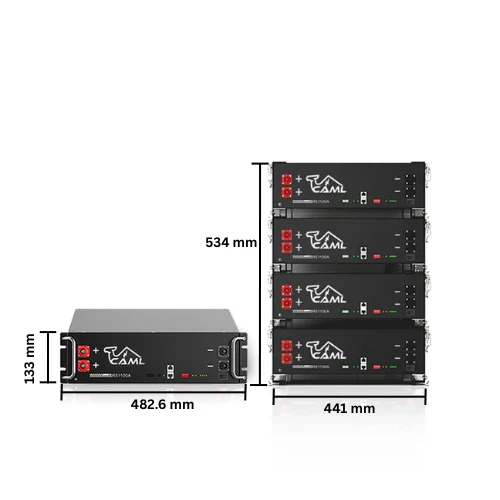

| Dimensions (mm) | 482 x 460 x 133.5 mm |
| Certifications | UN38.3, IEC62619, UL1973, CE |
Product Overview
The CAML 51.2V 100Ah Rack-Mount battery delivers reliable, heavy-duty power suitable for large commercial energy storage and industrial solar systems. High Ah efficiency and parallel scalability up to 160 kWh make it an exceptionally flexible solution for high-capacity projects.
